Sports Bar WolfPackSilver 1080p 8x16 HDMI Matrix Switch switches both audio and video signals. Because it is a matrix switcher, it allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination. The 1080p 8x16 HDMI Matrix Switch is designed to allow the switching and distribution of 8 HDMI inputs to 16 HDMI outputs. Control of the matrix is via IR, WEB GUI, Software, & front buttons.
The WolfPackSilver 8x16 HDMI Matrix Switcher is a top-of-the-line digital matrix switcher made for the demands of today's HDMI (High-Definition Multimedia Interface) routing. Created to route your system's HDMI signals to go to 16-outputs from 8-inputs, this 8x16 HDMI Matrix Switch delivers high performance.

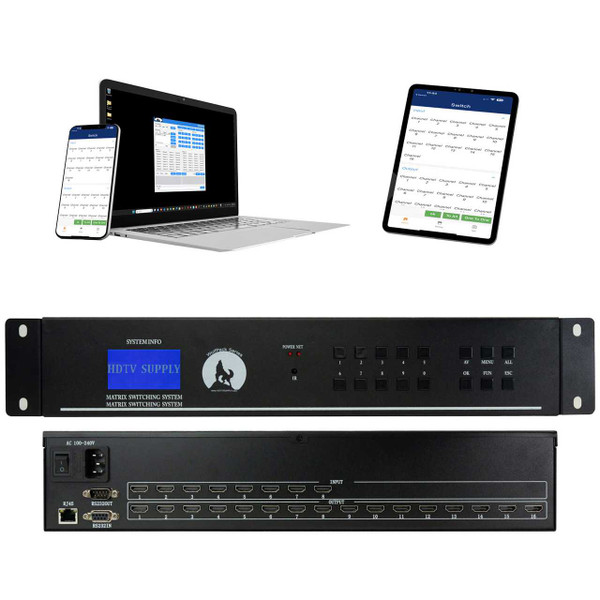

Control of the 8x16 HDMI Matrix Switch is via (1) IR Remote Control, (2) an iOS & Android App, (3) RS232, (4) PC Software, (5) front buttons and (6) a WEB GUI for any Internet browser.
NOTE: We recommend using the Apps and the WEB GUI on a tablet, versus a phone, due to increased viewing space.
This 8x16 HDMI Switch can be used in Sports Bars, Restaurants, Casinos, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Factories, Conference Rooms, Schools, Home Theaters & many other installations requiring large HDMI matrix switching.
Reasons that set our Sports Bar WolfPackSilver 8x16 HDMI Matrix Switcher apart from others:
- Sharp 1080p HD Picture
- Small chassis
- HDMI 1.4 and HDCP 1.4 compliant
- Preset scenes that can be Saved and Recalled
- Closed Caption (CC) Pass-through
- Control via an IR remote control, Software & Front Buttons
- a WEB GUI for any Internet browser
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
Sports Bar WolfPackSilver 8x16 HDMI Matrix Switcher Features:
- Supports 1080p at 60 Hz & downward compatible
- Switching of up to 8 HDMI sources up to 16 displays
- Built-in HDCP 1.4 internal management
- Presets to save for often used configurations
- Supports High Speed HDMI 1.4 Specifications (Deep Color, Lip Sync, and HD lossless audio formats)
- Supports DDC transmission
- Supports Dolby Digital-True HD & DTS-HD
- Control via iOS & Android App, IR remote control, PC Software & front buttons
- ~4 second switching time
- 25 foot maximum 24AWG output HDMI cable length
The WolfPackSilver 8x16 HDMI Matrix Router provides full HDCP internal management for today's integration in the commercial A/V market, ensuring HDCP key authentication and administering the handshake internally. Our WolfPackSilver 8x16 HDMI Matrix Router comes with a full HDCP (High-bandwidth Digital Content Protection) internal management system that will eradicate any interception of your digital data.
Streaming between the source and display units is easily controlled through our HDMI 8x16 Matrix interface. HDCP key authentication will no longer be an issue when using our switcher.
Why not buy this Sports Bar 8x16 HDMI Matrix Switch today?
WolfPackSilver 8x16 HDMI Matrix Switcher Specs:
- Fast Switching Circuitry
- Gain: 0 dB
- Bandwidth: 340 MHz (10.2 Gbit/s)
- Video Signal: HDMI (or DVI-D)
- Maximum Pixel Clock: 165MHz
- Resolution Range: Up to 1080p
Sports Bar WolfPackSilver 8x16 HDMI Matrix Switcher Input:
- Input: 8 HDMI
- Input Connector: HDMI 1.4
- Input Level: T.M.D.S. 2.9V/3.3V
- Input Impedance: 75Ω
- Output Impedance: 75Ω
Sports Bar WolfPackSilver 8x16 HDMI Matrix Switcher Output:
- Output: 16 HDMI
- Output Connector: HDMI 1.4
- Output Level T.M.D.S. 2.9V/3.3V
Other Sports Bar WolfPackSilver 8x16 HDMI Matrix Switcher Specs:
- Input cable distance: ~15 feet 4K 30 AWG24 HDMI 1.4 high speed cable
- Output cable distance: ~25 feet 4K 30 AWG24 HDMI 1.4 high speed cable
- HDCP Management: Compliant with High-bandwidth Digital Content Protection (HDCP) using DVI and HDMI 1.4 standards. The built-in HDCP management technology can analyze HDCP key authentication and realize handshake internally.
- Serial Control Ports for hardware software control: RS-232, 9-pin female D connector with a pin configuration of 2 = TX, 3 = RX, 5 = GND
- IR Remote: Yes
- Front Panel Control: LCD
- Power Supply: 100VAC ~ 240VAC, 50/60Hz
