HDMI Over LAN Matrix Switchers

These Sports Bar WolfPack 1080p HDMI Over LAN Matrix POE Switchers send a 1080p HDMI video & audio signal to up to 450 feet using a single CAT5e/6/7 cable to up 40-TVs. They are configured with multiple 1080p POE HDMI Transmitters (TX), and multiple 1080p POE HDMI Receivers (RX), and an appropriate sized POE Ethernet Switch.

4-Ways to Configure: It supports (1) One to one, (2) One to many, (3) Many to one, and (4) Many to Many.

Wireless Real Time Video iPad Preview: Preview the source video on an iPad before sent it to the TVs. That means your iPad will show, in real time, the videos that are on, say, all your DirecTV receivers. If you have 6-DirecTV receivers all set to different channels you'll see 6-different real-time videos, not pictures, but real time video on the iPad. You then can send them, if You choose.

Apps & Windows Control: This LAN based HDMI Matrix Switcher allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination all controlled with an iPad and Android App, wall mounted touchscreens, and a Windows PC. You can even turn all the TVs Off & On with one iPad button.

Video Wall Support: You can create a system with Video Walls of any size, and quantity with input & output HDMI resolutions supporting up to 1080p. The video walls show one large picture or multiple individual pictures.

Cascadeable Ethernet Switches: The ethernet switches be cascaded and still act as a one large matrix. This is great for multiple floors, multiple rooms, and even multiple buildings by using fiber between them. All the many TVs will be in perfect synch with each other. The Ethernet switch supports both copper (CAT5e/6) and fiber network interfaces and supports H.264 communication protocols.

VLAN Support: Our 1080p LAN based HDMI Matrix Switchers can be installed on your existing LAN as they have VLAN capability. Our VLAN HDMI Matrix System uses VLAN technology to isolate and protect the HDMI signals from other traffic on your network. Devices on the same VLAN can communicate with each other as if they were on the same physical network, even if they are connected to different switches or routers.

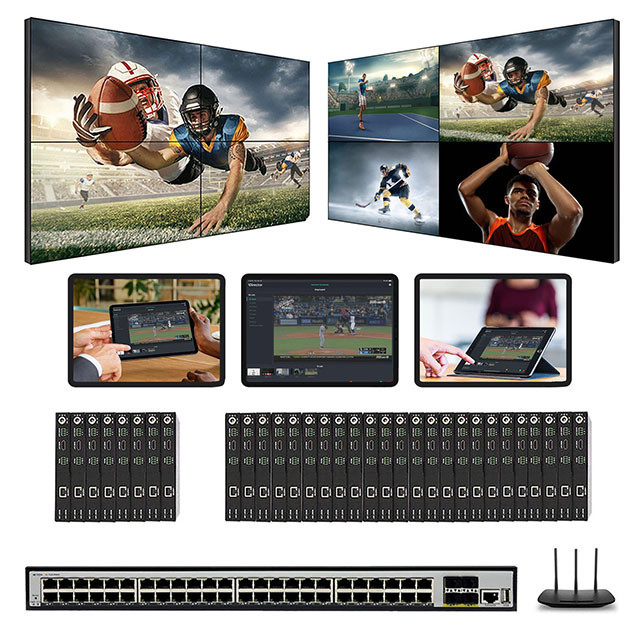

Build Your Own (BYO) or Buy Pre-configured 1080p Systems: We offer two ways to purchase our systems, one is to BYO, the the other is buying one of our preconfigured systems below. The picture shown is a 1080p 6x10 HDMI Over LAN Matrix POE Switcher with a 24-port managed Ethernet switch and wireless iPad interface.

Compare our Sports Bar 1080p POE HDMI Over LAN Matrix Switchers Features vs Others:

  • Wireless Real Time Video Preview
  • iPad shows live source video
  • Supports a VLAN
  • AV Over IP w/POE Technology
  • Rename Sources & Displays on tablet
  • WIFI iPad & Android Apps
  • 1080p video over 1G Network Switch
  • Bandwidth is only 7 Mbps
  • Latency is only 80ms
  • Windows software control
  • Auto-scaling from 480p to 1080p
  • Video walls up to a 7x7 (49-TVs):
    • Any Size Video Walls
    • Any Qty Video Walls
  • An iPad button turns TVs Off & On w/CEC
  • Seamless 4-frame (60ms) switching
  • Unlimited Save & Recall presets
  • Plug & Play (DHCP IP address)
  • Supports UI custom control
  • IP controller for 3rd party control
  • Push one key for the IP address
  • 3rd party Open UDP commands
  • 19" Rack cage up to 14-TXs
  • Extends HDMI to 450' w/CAT6
  • Supports the H.264 protocol
  • SEC Security Compliance
  • HDCP compliant
  • Separate audio outs
  • Scalable Ins & Outs
  • Field Upgradeable to 50-total ports
Read More

Overall, these Sports Bar WolfPack POE HDMI Over LAN Matrix System are a powerful and versatile systems that can be used in a variety of applications. It is a great choice for businesses, schools, sports bars. and churches that need to distribute high-quality video and audio to multiple locations.

Got a question or special need? Call 833-WOLFPACK or 833-965-3722 right now to get a quote today.

Why not buy a Sports Bar 1080p HDMI Over LAN Matrix Switcher up to 40-TVs from us today?
