These Sports Bar WolfPack 4K 30 Hz HDMI Over LAN Matrix POE Switchers send a 4K 30 Hz HDMI video & audio signal up to 450 feet using a single CAT5e/6/7 cable up to 50-TVs. They are configured with multiple 4K 30 Hz POE HDMI Transmitters (TX), and multiple 4K 30 Hz POE HDMI Receivers (RX), and an appropriate size POE Ethernet Switch. They can be configured 4-Ways...(1) One to one, (2) One to many, (3) Many to one, and (4) Many to Many.

The Sports Bar WolfPack 4K 30 Hz AV via LAN Transceiver is both a POE Transmitter & POE Receiver & can be switched by the PC software to work either as Transmitter (Encoder) or as Receiver (Decoder). The front panel LCD screen shows the model number, ID, and IP settings making for an easy installation.

Sports Bar 4K 30 Hz HDMI Over LAN Matrix Switchers Key Features:

• Wireless Real Time Video iPad Preview: Preview the source video on an iPad before sent it to the TVs. That means your iPad will show, in real time, the videos that are on, say, all your DirecTV receivers. If you have 6-DirecTV receivers all set to different channels you'll see 6-different real-time videos, not pictures, but real time video on the iPad. You then can send them, if You choose.
• Apps & Windows Control: This 4K 30 Hz LAN based HDMI Matrix Switcher allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination all controlled with an iPad and Android App, wall mounted touchscreens, and a Windows PC. You can even turn all the TVs Off & On with one iPad button.

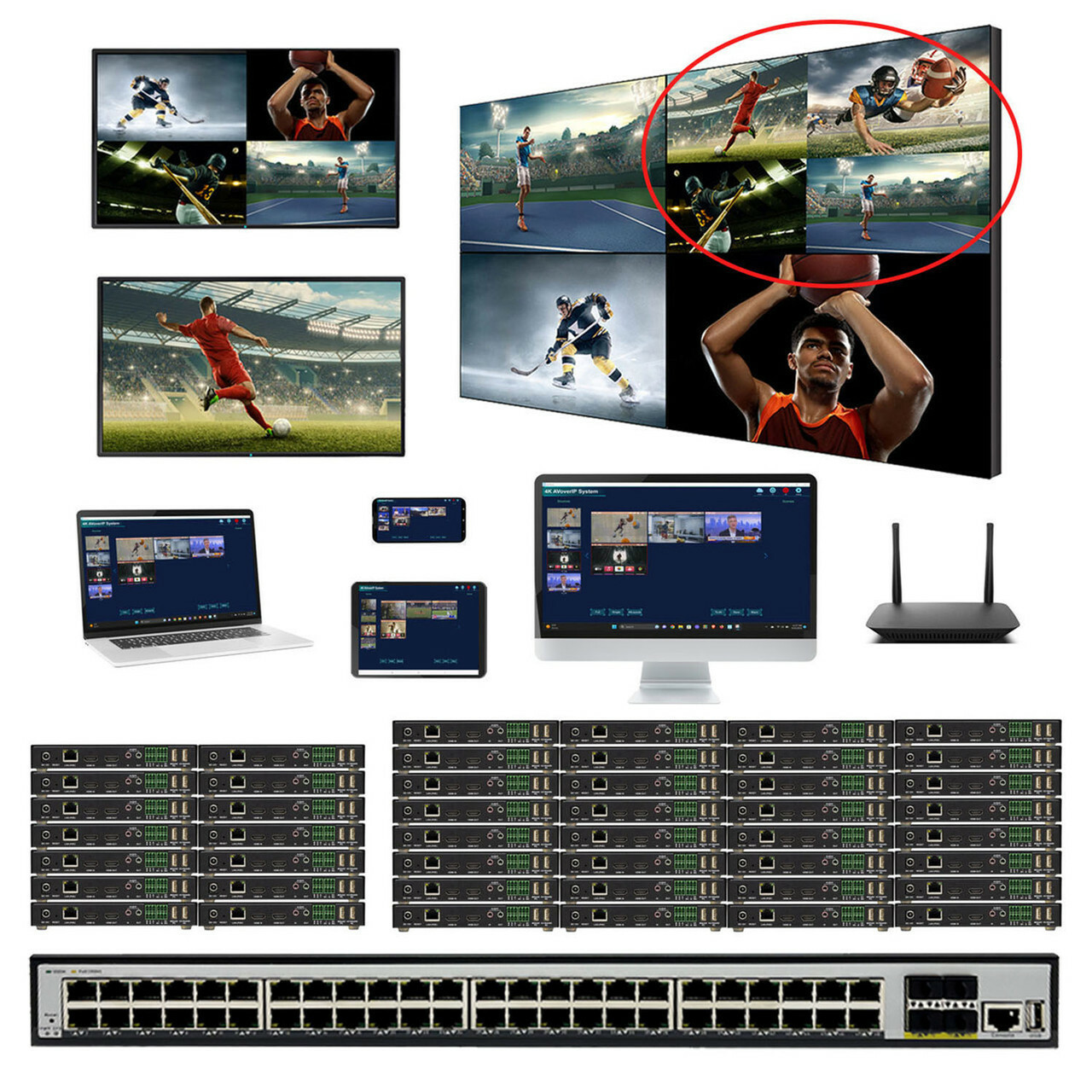

• 4K 30 Hz Video Wall & Multi-viewer Support: You can create a system with Video Walls of any size, and quantity with input & output HDMI resolutions supporting up to 4K 30 Hz. It even supports a multi-viewer shown in the upper right corner of this picture. The Multi-viewer can show up to 9-windows on one TV screen. A 4K 30 Hz 14x32 HDMI LAN Matrix with a 2x2 video wall, 2x2 Multiviewer, 48-port Ethernet switch and various ways to control it is shown in this picture.
• Cascadeable Ethernet Switches: The ethernet switches be cascaded and still act as a one large matrix. This is great when used for multiple floors, multiple rooms, and even multiple buildings connected by CAT6, or by using fiber between them. All the many 4K 30 Hz TVs will be in perfect synch with each other.
• VLAN Support: Our 4K 30 Hz LAN based HDMI Matrix Switchers can be installed on your existing LAN as they have VLAN capability. Our VLAN HDMI Matrix System uses VLAN technology to isolate and protect the HDMI signals from other traffic on your network. Devices on the same VLAN can communicate with each other as if they were on the same physical network, even if they are connected to different switches or routers.
• USB & KVM: KVM Control & Extension with Zero Latency using 2-USBs
• Scrolling Text: Supports a background image and scrolling text function.
• Build Your Own (BYO) or Buy 4K 30 Hz Pre-configured Systems: We offer two ways to purchase our systems, one is to BYO, and the other is buying one of our preconfigured systems below.

Compare our Sports Bar 4K 30 Hz POE HDMI Over LAN Matrix Switchers Features vs Others:
