Sports Bar 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6

WolfPack

Sports Bar 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6
$1,750.00
SKU:
SBW-HDTVB88D70M
Availability:
In stock
1:
DCP 2.2/1.x Compliant
2:
Video Resolution up to 4K2K@60Hz
3:
HDR10, HDR10+, Dolby Vision
4:
Support One-Way IR Matrix Function
5:
Control Via Front Panel Buttons

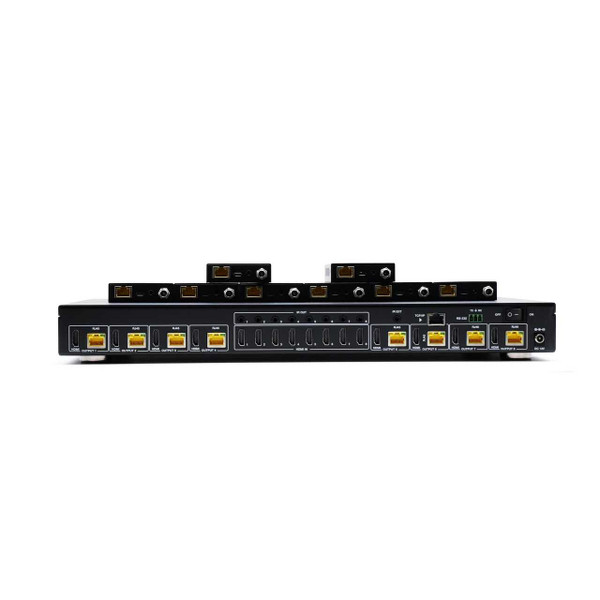

This Sports Bar WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6 can connect 8 HDMI sources to 16 displays. It features 8 HDMI outputs and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports the transmission of video (resolution is up to 1080p Full HD and 4Kx2K@60Hz 4:4:4) and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via connecting a CAT Receiver to each of the CAT-Cable outputs. The Matrix supports one-way IR matrix function. Besides, it can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

Sports Bar WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6 Features:

  • HDMI 2.0b and HDCP 2.2/1.x compliant
  • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
  • 8 HDMI inputs, 8 HDMI & CAT mirrored outputs
  • HDMI ports support 18Gbps lossless compressed video bandwidth
  • HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
  • CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
  • HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • Advanced EDID management and CEC control are supported
  • 12V POC on all CAT ports
  • Support one-way IR matrix function
  • Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Why not buy this Sports Bar WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6 today?

Sports Bar WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6 Specifications:

  • HDMI Compliance: HDMI 2.0b
  • HDCP Compliance: HDCP 2.2/1.x
  • Video Bandwidth: 18Gbps
  • Video Resolution: Up to 4K2K@50/60Hz (4:4:4)
  • Color Space: RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
  • Color Depth: 8-bit, 10-bit, 12-bit (1080p@60Hz), 8-bit (4K2K@60Hz YUV4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
  • HDR: HDR10, HDR10+, Dolby Vision, HLG
  • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Transmission Distance: 230ft / 70m (via a single CAT6 cable)
  • ESD Protection: Human-body Model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
  • Matrix:
    • Inputs: 8 x HDMI Type A [19-pin female]
    • Outputs: 8 x HDMI Type A [19-pin female] 8 x CAT port [RJ45]
    • Controls: 1 x TCP/IP [RJ45] 1 x RS-232 [3-pin phoenix connector], 8 x IR OUT [3.5mm Stereo Mini-jack], 1×IR EXT [3.5mm Stereo Mini-jack]
  • CAT Receive:
    • Inputs: 1x IR IN [3.5mm Stereo Mini-jack], 1x CAT port [RJ45]
    • Output: 1x HDMI Type A [19-pin female]
    • Control: 1x SERVICE [Micro USB, Update port]
  • Housing: Metal Enclosure
  • Color: Black
  • Dimensions:
    • Matrix: 17.32inch (W) × 9.85inch (D) × 1.75inch (H)
    • Receiver: 2.40inch (W) x 3.46inch (D) x 0.70inch (H)
  • Weight Matrix: 7lbs, Receiver: .35lbs
  • Power Supply
  • Input: AC 100 - 240V 50/60Hz
  • Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified)
  • Power Consumption: 50W (Max)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (non-condensing)

Why not buy this Sports Bar WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch over CAT6 today?

User Manual for WolfPack 4K 60 Hz 8x8 4:4:4 18-GBPS HDMI Matrix Switch
